Aluminum Moisture-Proof I-Trim with LED Channel

Aluminum Moisture-Proof I-Trim with LED Channel

Aluminum Moisture-Proof I-Trim with LED Channel, a 6063-T5 aluminium alloy architectural profile, is made by Zhengzhou Zhongxiu Building Materials Co., Ltd. Our 132-mu integrated production plant with 300+ moulds makes this trim with structural panel joinery and LED lighting for moisture-intensive areas. Standard length is 2.44m, customisable to 3m. This anodised coating is ≥10μm thick and has been evaluated for corrosion resistance using 48-hour neutral salt spray methods. High thermal conductivity (201 W/m·K) ensures efficient heat dissipation for high-density LED strips, with ±0.3mm dimensional tolerance for precise installation in bathrooms, kitchens, and spas.

Product Overview

This I-shaped trim serves two objectives in modern interiors. LED lighting strips are shielded in a tunnel that hides rough panel edges.

Precision-engineered flanges keep water out. With silicone sealant and a gasketed diffuser, it prevents condensation and humidity.

The LED cover snaps on for easy maintenance. Replacement bulbs or strip adjustments can be done without tools or trim damage.

Technical Parameters

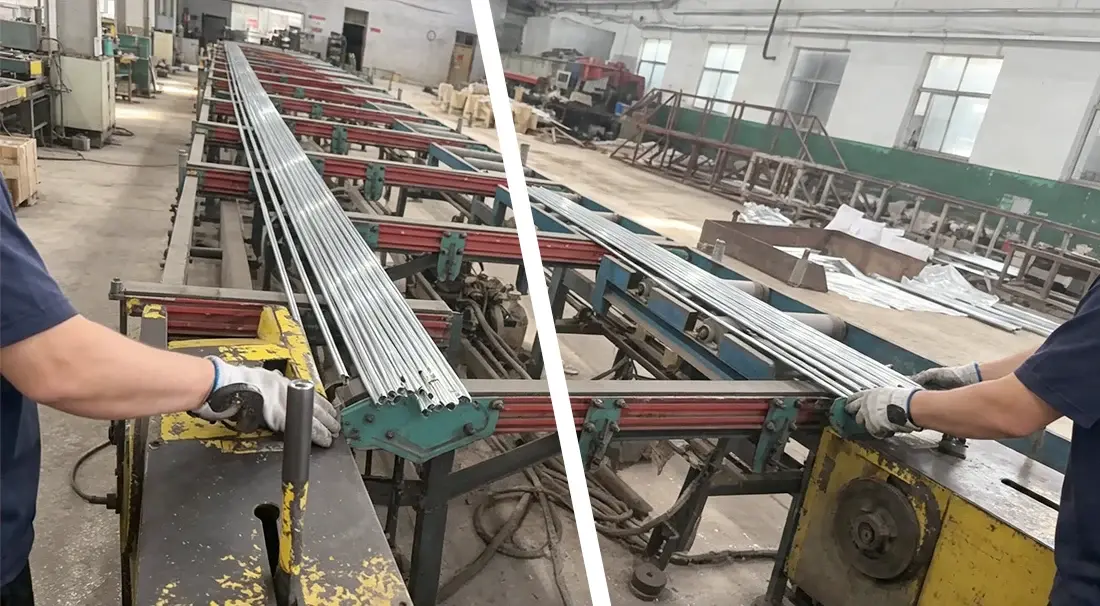

Quality Assurance You Can Trust

Our manufacturing system operates under ISO 9001:2015 standards with dual-layer inspection protocols.

Factory-Level Control monitors every production stage. Raw material verification ensures only qualified 6063-T5 alloy enters extrusion lines. Surface quality inspectors check anodizing uniformity under D65 standard lighting to detect any color variations or extrusion lines.

Dimensional accuracy testing uses digital calipers and go/no-go gauges. This maintains the ±0.3mm tolerance critical for seamless panel integration.

Pre-Shipment Verification includes 48-hour neutral salt spray testing (NSS). This confirms the anodized layer resists pitting and peeling in high-humidity conditions.

Diffuser integration testing verifies the snap-fit seal maintains its moisture-proof barrier. Random sampling and installation simulation testing ensure every shipment meets export standards.

With anodized film thickness reaching ≥10μm and peel strength ≥2.5N/mm, you receive profiles proven for long-term performance in challenging environments.

Competitive Advantages

Proven Moisture Resistance – The deep-seated channel and precision flange work together to block water ingress. The anodized coating is chemically inert, resisting alkaline tile adhesives and grouts commonly found in wet areas.

Superior Heat Management – High-purity aluminum delivers 201 W/m·K thermal conductivity. This prevents LED thermal throttling even with 120 LED/m high-density strips, extending lifespan and maintaining consistent brightness.

Wide Face Design – The profile includes an additional 2mm face width. This prevents visible gaps when wall panels contract during cold or dry conditions, maintaining a seamless appearance year-round.

Tool-Free Maintenance – The snap-on diffuser cover removes without tools. Replace LED strips, adjust wiring, or clean the channel in seconds without disturbing the installed trim.

Custom Flexibility – Standard 2.44m lengths suit most residential projects. For commercial installations requiring fewer joints, we produce custom lengths up to 3m. Color matching to your wall panel selection is supported through our 200+ finish options.

Export-Ready Packaging – Every order ships on reinforced pallets with corner boards. This protects profiles during sea freight, reducing damage rates and insurance claims.

Application Scenarios

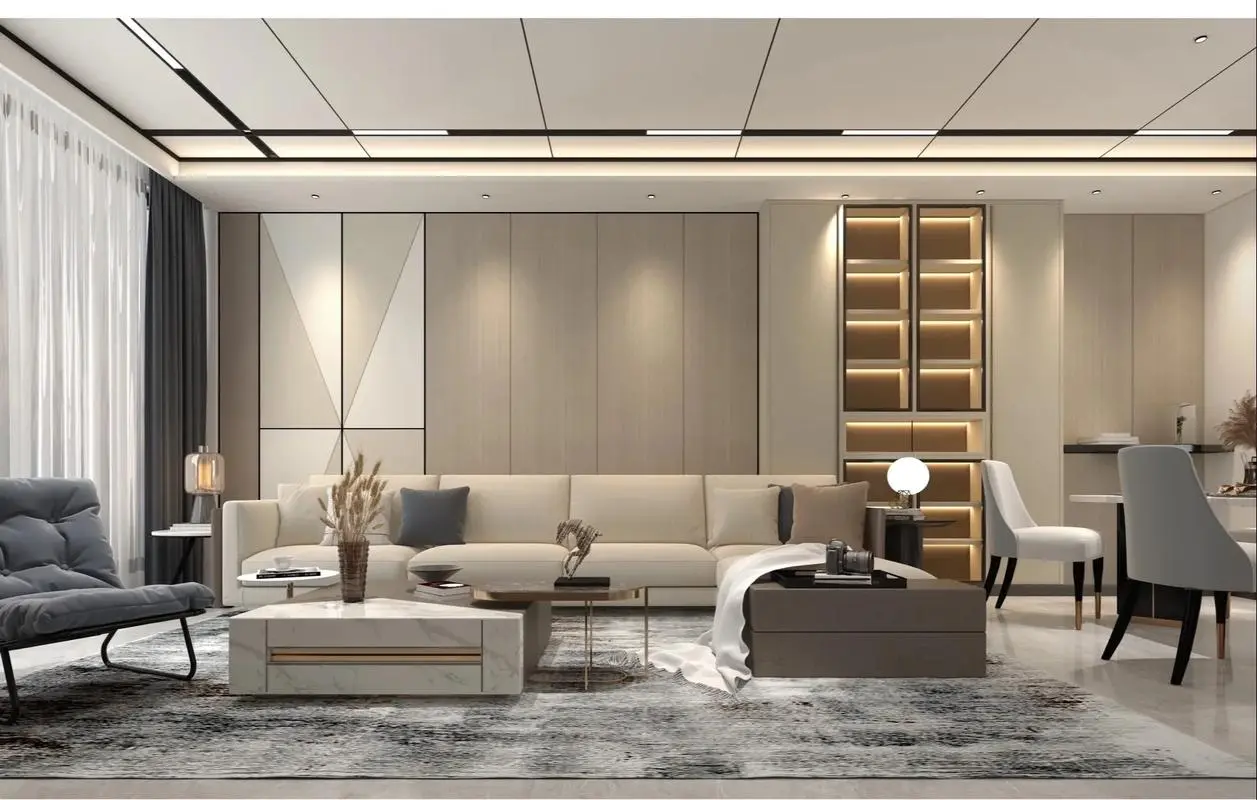

Luxury Wellness and Spa Facilities – Steam rooms and indoor pool perimeters demand materials that withstand constant vapor exposure. This trim manages transitions between large-format porcelain slabs while providing ambient lighting resistant to condensation-induced shorts.

High-End Residential Bathrooms – Homeowners seeking modern aesthetics benefit from the integrated lighting that eliminates bulky fixtures. The Aluminum Moisture-Proof I-Trim with LED Channel handles expansion and contraction of wall panels while maintaining a clean, illuminated finish.

Commercial Food Processing Zones – Facilities requiring frequent wash-downs need hygienic, moisture-sealed joints. This profile incorporates task lighting directly into wall panel transitions, simplifying cleaning protocols and reducing fixture maintenance.

Covered Exterior Soffits – In covered patios and building entrances, the trim manages thermal expansion of exterior cladding. It delivers accent lighting that withstands coastal salt air and evening humidity without compromising structural integrity.

Installation & Compatibility

The profile accommodates panel thicknesses from 5mm to 12.5mm standard. Custom 'I' widths are available for specific project requirements.

The trim leaves 0.5-1mm clearance beyond panel thickness. This extra gap allows easy panel insertion during installation while the wide face conceals any edge imperfections.

Installation methods include adhesive bonding for lightweight panels or screw mounting for heavy-duty applications. The anodized surface is scratch-resistant, maintaining appearance even in high-traffic installations.

The LED channel accepts standard strip widths. The diffuser's 85% light transmission rate ensures uniform illumination without hot spots or dark zones.

Why Choose Kangdishi?

Our 30+ years of manufacturing experience through Zhengzhou Keyi Aluminum ensures consistent quality. The 300+ mold library provides design flexibility for market-specific requirements.

Standard production lead time is 7-10 days. Custom orders ship within 10-15 days, with expedited scheduling available for urgent projects.

We provide free cutting samples for project evaluation. Technical consultation helps you calculate quantities and select appropriate profile widths for your panel specifications.

ISO9001, SGS testing, and REACH compliance documentation support your procurement and regulatory requirements. CE certification and RoHS reports are available upon request.

FAQ

Q: How does the product prevent water ingress?

A: The profile features a deep-seated channel and precision-engineered flange. When combined with silicone sealant and a gasketed diffuser, it creates an effective barrier against moisture penetration in humid environments.

Q: Can it be used with 120 LED/m high-density strips?

A: Yes. The high-purity aluminum provides excellent heat sink properties with 201 W/m·K thermal conductivity. This prevents thermal throttling even with high-wattage LED configurations.

Q: Is the trim compatible with all panel thicknesses?

A: Most standard designs accommodate 10mm to 12.5mm panels. We also produce custom 'I' widths for 5mm and 8mm panels based on your specific project requirements.

Q: Does the finish react with tile adhesives?

A: No. The anodized layer is chemically inert and resistant to the alkaline nature of most thin-set mortars and grouts used in wet area installations.

Q: What is the advantage of the wide face version?

A: The wide face adds approximately 2mm coverage. This prevents visible gaps when wall panels shrink during cold or dry conditions, maintaining a seamless aesthetic appearance.

Q: Can the LED cover be removed for bulb replacement without damaging the trim?

A: Yes. The cover uses a snap-on design. Simply pop it off, replace the LED strip or perform maintenance, then snap it back into place—no tools required.

Contact Us

Ready to enhance your next project with Aluminum Moisture-Proof I-Trim with LED Channel? Email info@kangdishi.com for quotations, samples, or technical consultation.
